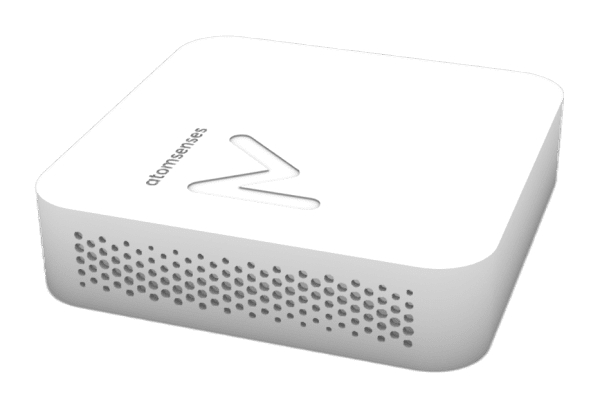

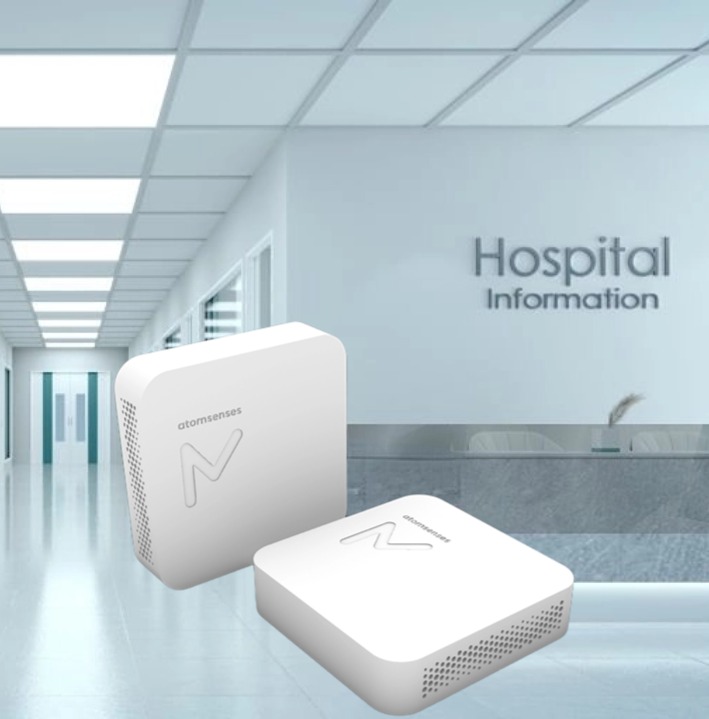

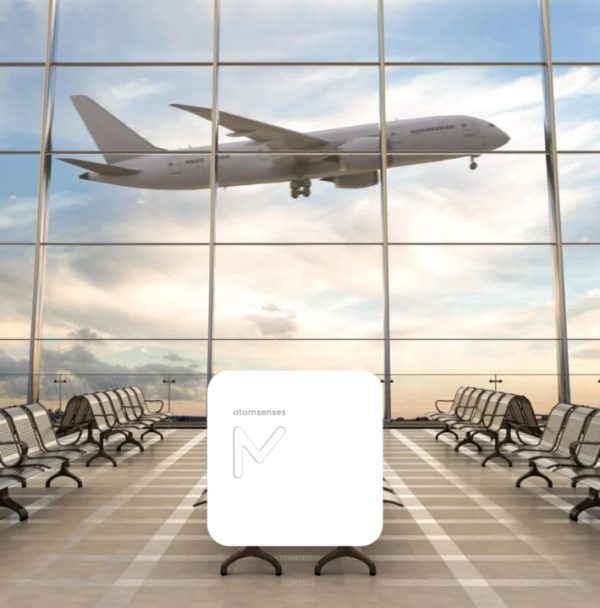

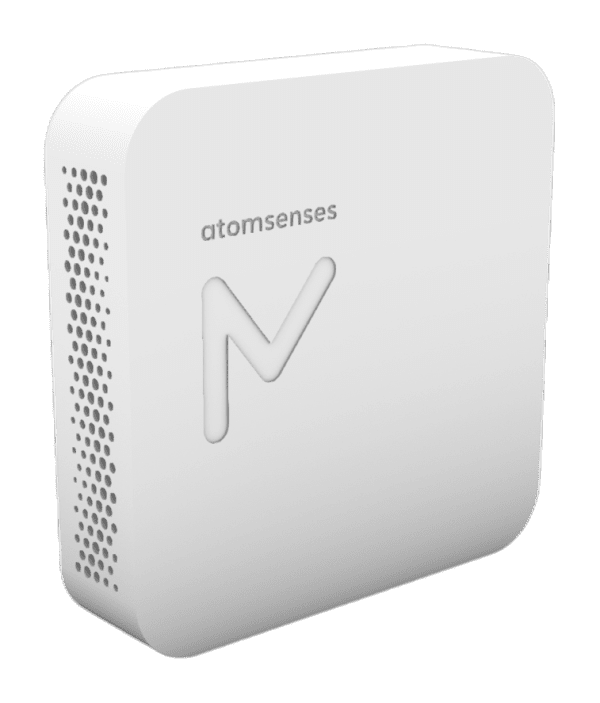

LoRaWAN Modular Indoor Air Quality Integrated Sensing Solution

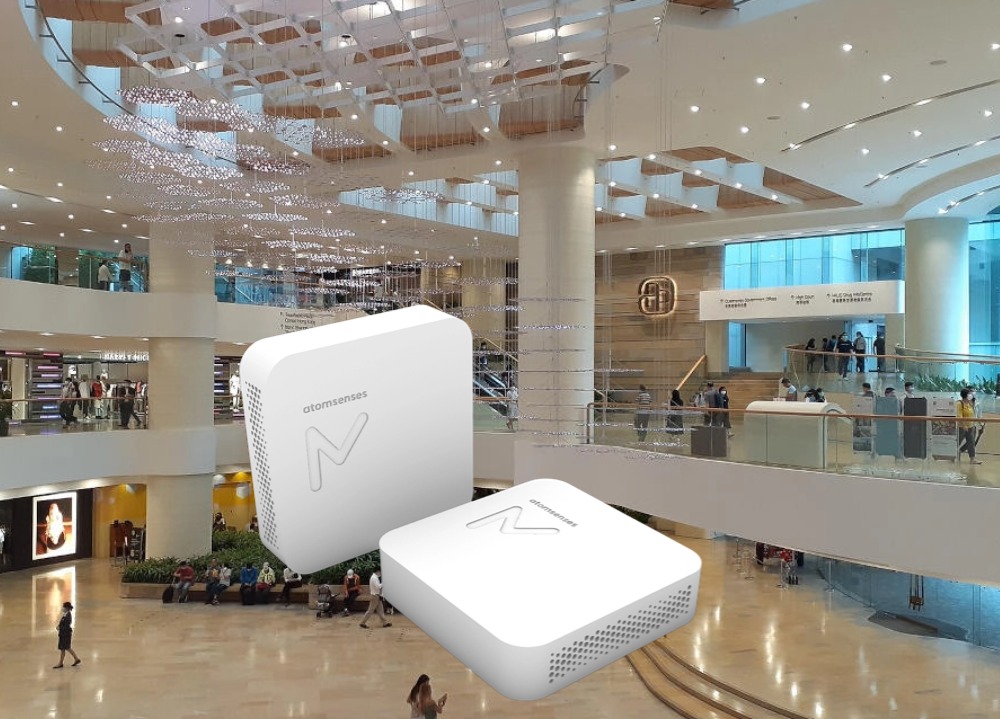

LoRaWAN Modular Indoor Air Quality Integrated Sensing Solution - Image 2

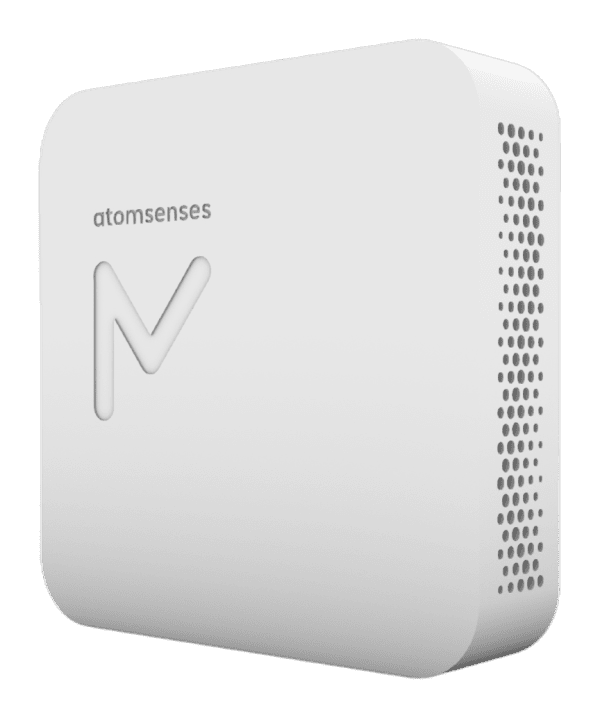

LoRaWAN Modular Indoor Air Quality Integrated Sensing Solution - Image 3

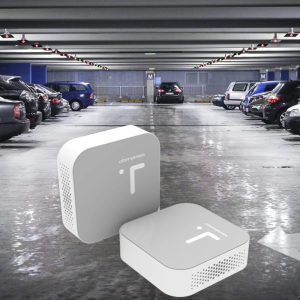

LoRaWAN Modular Indoor Air Quality Integrated Sensing Solution - Image 4

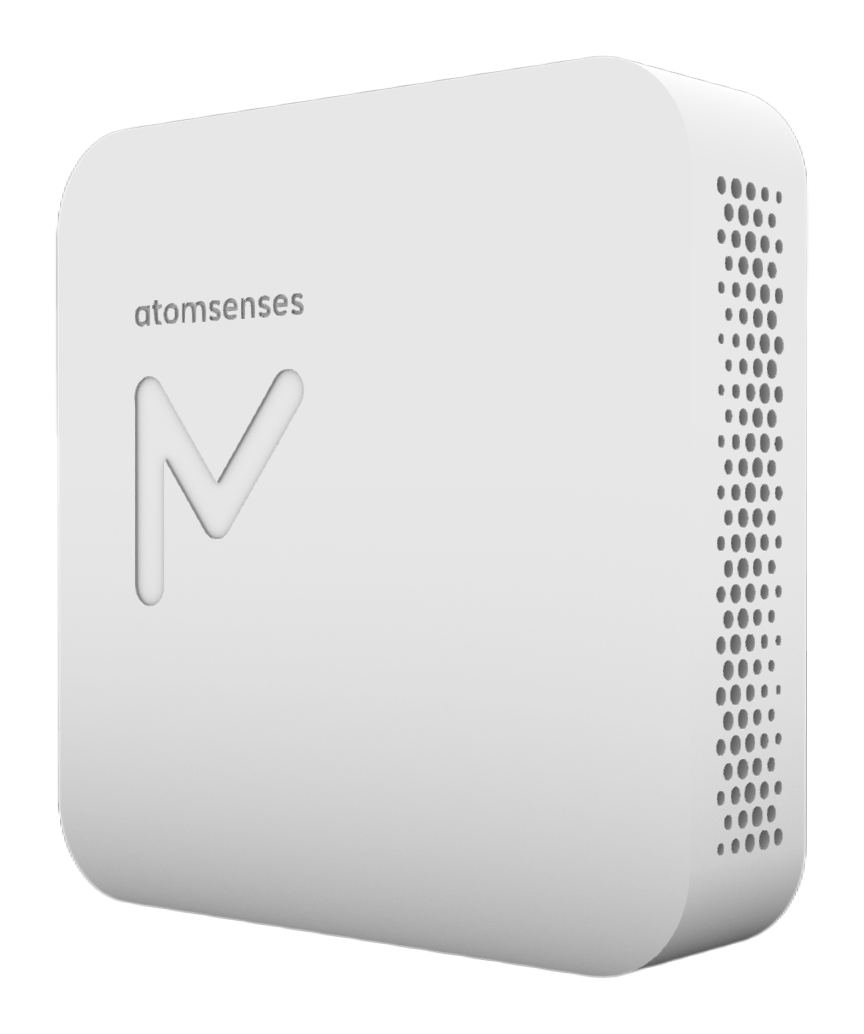

LoRaWAN Modular Indoor Air Quality Integrated Sensing Solution - Image 5

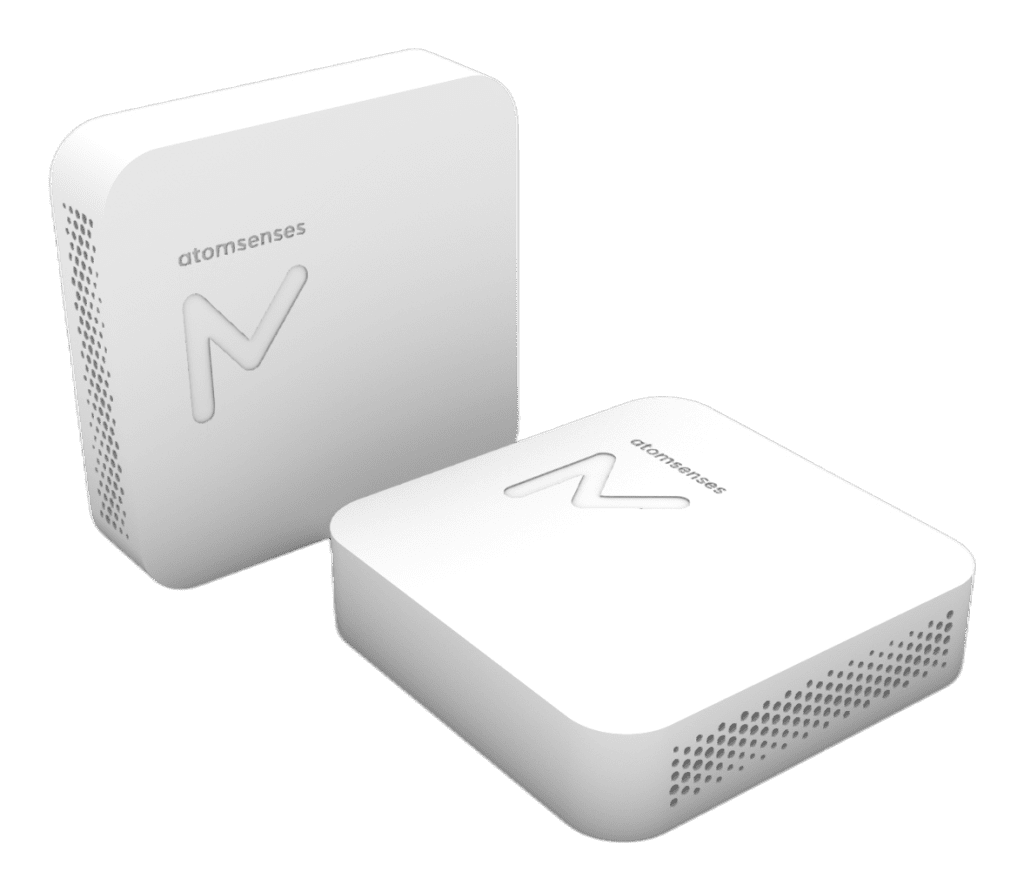

LoRaWAN Modular Indoor Air Quality Integrated Sensing Solution - Image 6

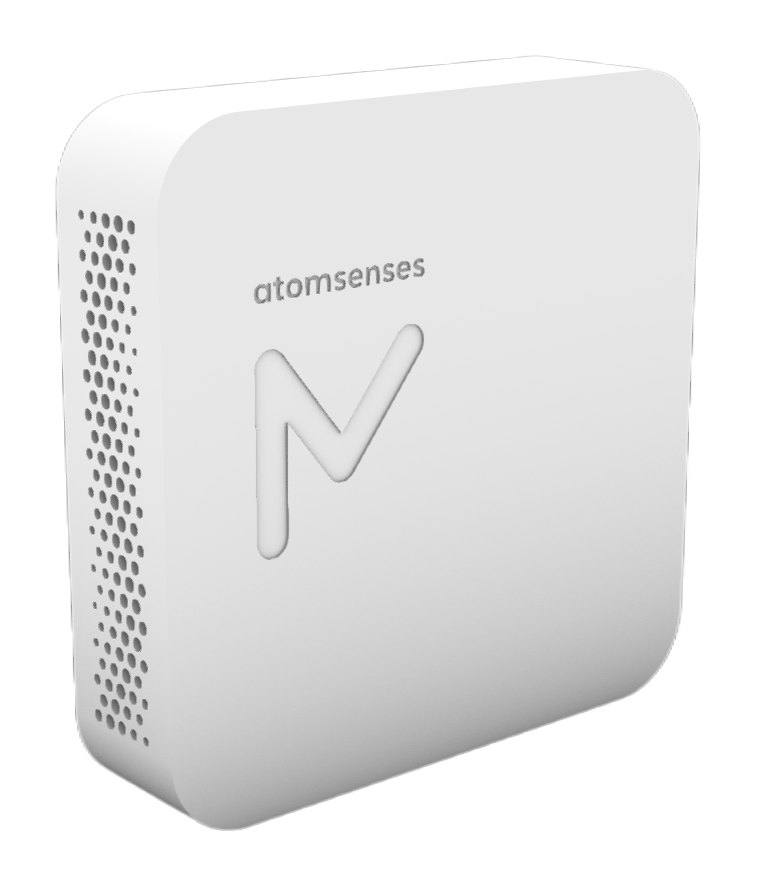

LoRaWAN Modular Indoor Air Quality Integrated Sensing Solution - Image 7

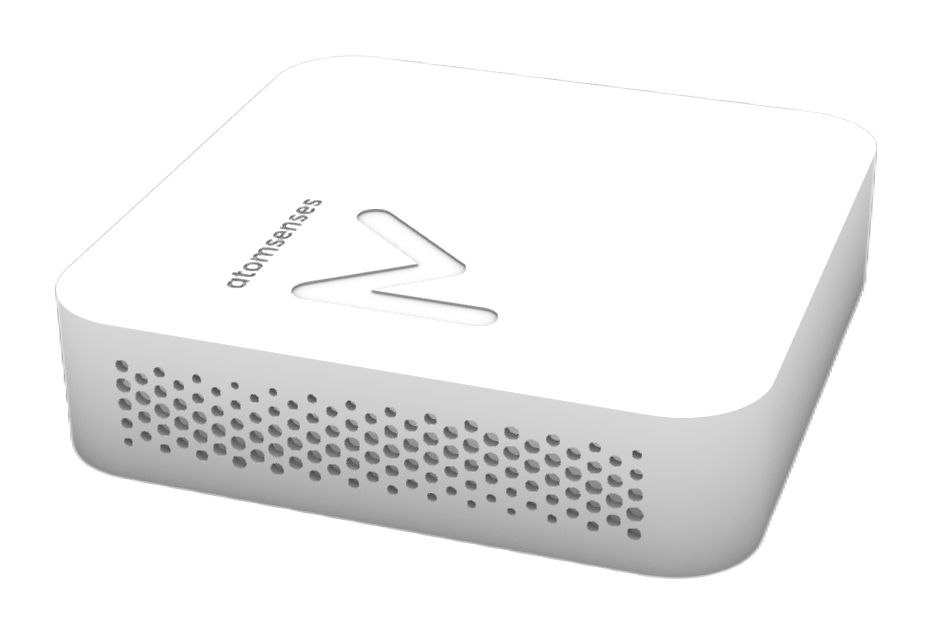

LoRaWAN Modular Indoor Air Quality Integrated Sensing Solution - Image 8

LoRaWAN Modular Indoor Air Quality Integrated Sensing Solution

Wireless Transmission
Technology LoRaWAN®
Frequency CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A

Sensors
Temperature Range -20°C~60°C
Accuracy ± 0.2°C
Resolution 0.1°C
Humidity Range 0% to 100% RH
Accuracy ± 2% RH
Resolution 0.5% RH
Carbon Dioxide (CO2) Range 400 to 5000 ppm
Accuracy ± (30 ppm + 3 % of reading)
Resolution 1 ppm
TVOC
Operating Principle MOX (MEMS)
Range1 1.00 ~ 5.00 (IAQ Rating)
Accuracy ±1
Resolution 0.01
Carbon Dioxide (CO2)
Operating Principle Nondispersive Infrared (NDIR)
Range 400 ~ 5000 ppm
Accuracy ± (30 ppm + 3 % of reading)
(0°C~ 50°C, 0% to 85%RH)
Resolution 1 ppm

Physical Characteristics
Power Supply 1. 4 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
2. 5V/1A by Type-C Port
Battery Life1 Around 4 Years
Operating Temperature -20°C to +60°C
Relative Humidity 0% to 95% (non-condensing)
Relative Humidity 10% – 90% (non-condensing)
Ingress Protection IP30
Dimension 68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 in)
Installation 3M Tape Mounting, Wall Screw Mounting
Category: Tags: , , , , , , , , , , ,

Description

LoRaWAN Modular Indoor Air Quality Integrated Sensing Solution

COMPREHENSIVE INDOOR AIR QUALITY SENSOR

  • Detecting CO2 concentration, Temperature, Humidity, PM1.0, PM2.5, PM10, TVOC, HCHO, O3, Air Pressure, CO
  • Hibernation Mode for Low Power Consumption
  • Wireless Installation with Anti-theft Protection
  • Battery Life up to 5 Years
Request For SAMPLE

Improving Energy Efficiency and Indoor Comfort

Integrated 11+ types of sensor to measure various ambience conditions

Comprehensive IAQ sensor for detecting CO2 concentration, Temperature, Humidity, PM1.0, PM2.5, PM10, TVOC, HCHO, O3, Air Pressure, CO etc. accurately and economically.

  • 6-IN-1, 8-IN1, or 11-IN-1 or any combo

  • Higher Accuracy with better Insulation Design

  • Optional Interactive Information on E-ink Screen

Multi-Year Battery Operation

Built-in 2 × 2700 mAh ER14505 Li-SOCL2 Replaceable Batteries Battery Life up to 5 Years

Hibernation Mode for Ultra-Low Power Consumption

  • Use hibernation when you know you will not be using the IAQ sensor for an extended period of time to save more power.

  • Hibernation uses less power than smart screen mode because data collection will automatically turn off

*Customers can turn on the LoRa uplink with hibernation mode enabled, in which case the screen will still keep displaying hibernation mode, but only to save screen power consumption.

LoRaWAN® Based

  • Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
  • High Compatibility: compliant with standard LoRaWAN® gateways and network servers

Additional information

Air Quality Index/AQI

CO2, Temperature, Humidity, PM10, PM2.5, TVOC, CO, NO2, HCHO, O3, Illuminance
